Cobot applications in action

Complete production process with 100% control - turning / milling / cleaning / blowing off / measuring / i.O.-N.i.O. separation / packaging of i.O. parts in a very confined space with 100% accessibility to all system parts

Integration of 2 manual lathes with batch separation of the finished parts. Special highlight: The system can be converted to a CNC machine. Benefits: High output, production even in empty shifts, maximum flexibility through use at different locations, for a wide variety of parts

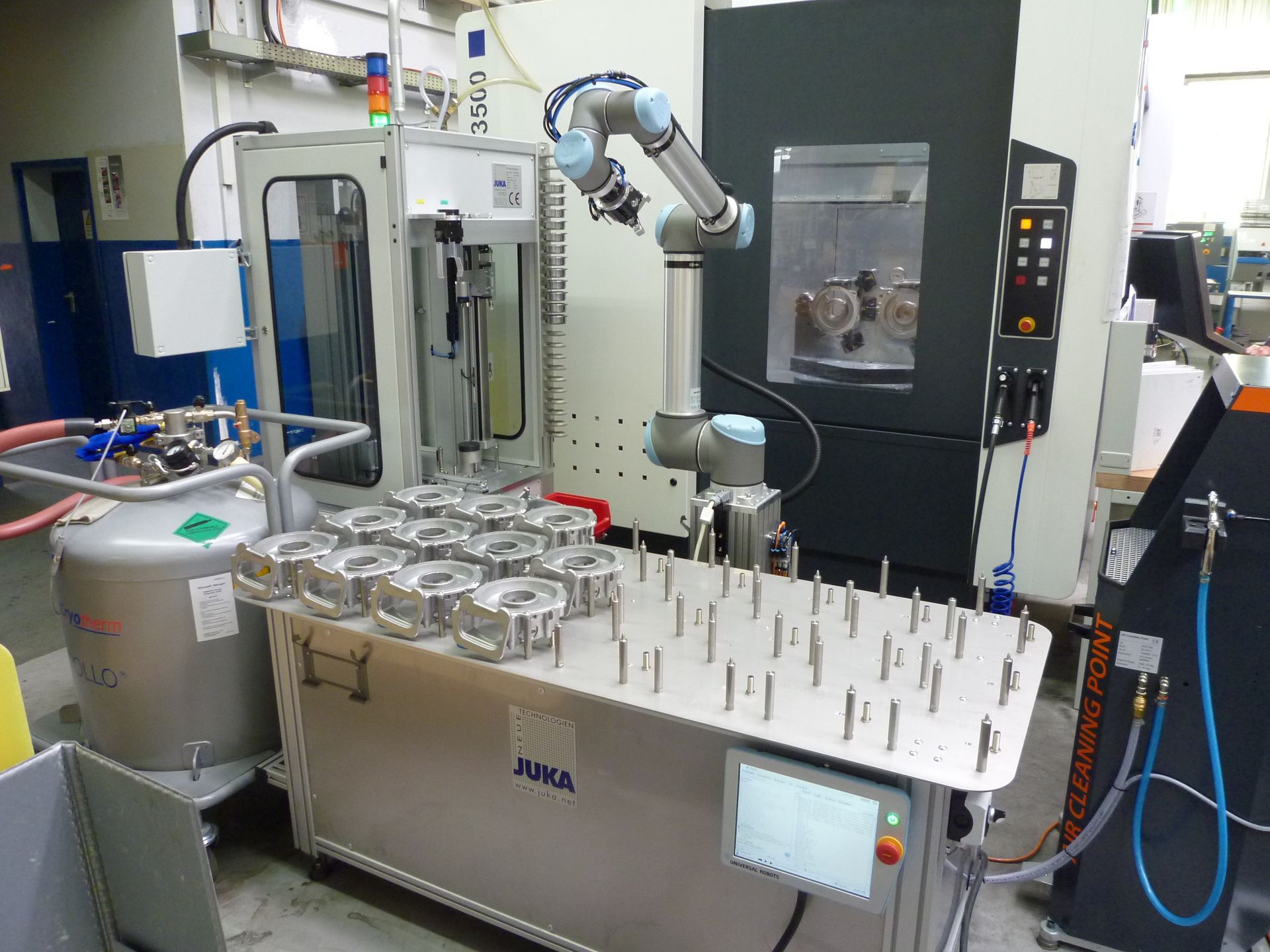

Machining and joining of steel rings in aluminium housings with nitrogen cooling and 100% measurement. Cobot-equipped horizontal machining centre with 4 clamping units, as well as joining unit, blow-off unit and ultrasonic bath. handling incl. automatic gripper changeover

Walk-in production island with complete machining from the raw part to the finished part. Linking of 2 lathes and a milling machine plus deburring station. Special features: High number of variants, batch sizes from 30 - 2000 pieces, minimum set-up effort, easy operation by all workers, reduction in personnel costs by 70-80%

System for screwing steel clips onto plastic parts, including torque testing. Maximum relief for workers during complex work with extremely short cycle times. Loading with raw parts at any time without downtime while the system is running

System with rotating magazine table, designed for a high number of variants with small and medium quantities to reduce the workload of the operators when operating multiple machines. Optimum access and operation of the lathe without robots guaranteed

Unstacking and stacking of 10 kg steel parts including wooden slats as intermediate layers on standard Euro pallets with precise machining of the workpieces in a milling machine. Increase in output by approx. 30% with complete ergonomic relief for people

Process changeover with drastic reduction in throughput time, autonomous running time even in empty shifts and over the weekend, special feature: production of workpieces in two clampings, OP10 and OP20 are processed alternately, parts are automatically turned, washed, blown dry, after every second pass a workpiece is ready for sale

Production centre in a very confined space, machine and robot system accessible from all sides, combination of 5 work steps, maximum output thanks to time-neutral loading, downtimes of the milling machine two minutes per hour
